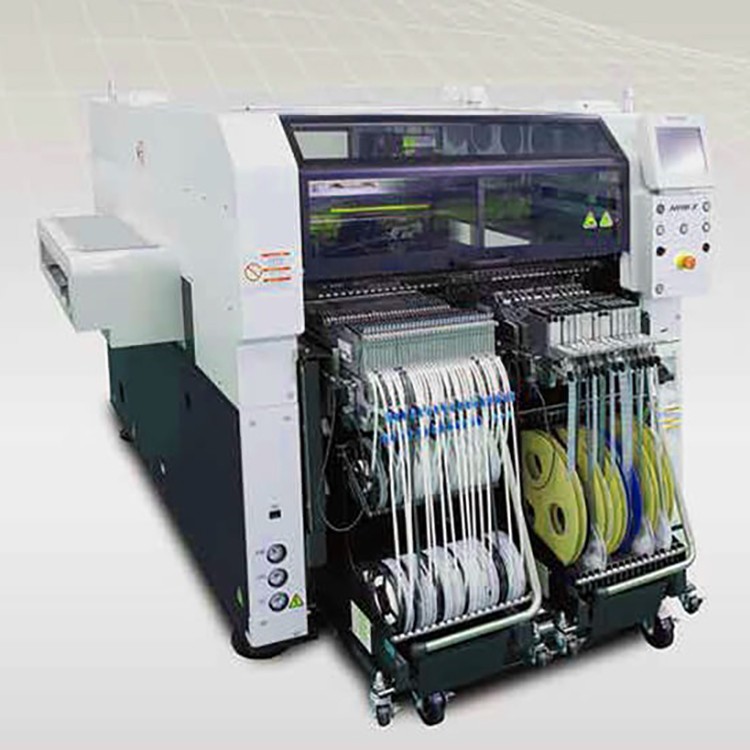

Model ID

NPM-WX

NPM-WXS

Model No.

NM-EJM9D

NM-EJM2E

PCB
dimensions
(mm)

Single-lane mode

Batch mounting : L 50 × W 50 ~ L 750 × W 610
2-position mounting : L 50 × W 50 ~ L 350 × W 610

Dual-lane mode

Dual transfer (Batch) : L 50 × W 50 ~ L 750 × W 300
Dual transfer (2-position) : L50 × W 50 ~ L 350 × W 300

Single transfer (Batch) : L 50 × W 50 ~ L 750 × W 590
Single transfer (2-position) : L50 × W 50 ~ L 350 × W 590

Electric source

3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA

3-phase AC 200, 220, 380, 400, 420, 480 V 2.1 kVA

Pneumatic source *1

Min.0.5 MPa、200 L /min (A.N.R.)

Dimensions (mm)

W 1 410 *2 × D 2 570 *3 × H 1 444 *4

Mass

2 740 kg
(Only for main body : This differs depending on the option configuration.)

2 660kg
(Only for main body : This differs depending on the option configuration.)

Placement head

1 head on each side (front, rear)

1 head (rear camera is optional)

Component
supply

Taping

Tape : 4 ~ 56 / 72 / 88 / 104 mm

Front rear 17-slot feeder cart specifications : Max. 136 product types (4, 8mm tape)

Stick

Front rear 17-slot feeder cart specifications :
Max. 32 product types (single stick feeder)

Front rear 17-slot feeder cart specifications :
Max. 16 product types *5 (single stick feeder)

Tray

One side tray specifications : Max.24, Front-rear tray specifications : Max.48
